In modern waste-to-energy systems, the geomembrane serves a dual purpose: it is both the containment liner and the gas-storage cover. Geoleed’s Sino-Japanese technical standards ensure that our membranes meet the extreme demands of pressure, chemical exposure, and weather.
1.System Structure
Bottom Liner: Prevents manure and wastewater from seeping into the ground, protecting groundwater resources.

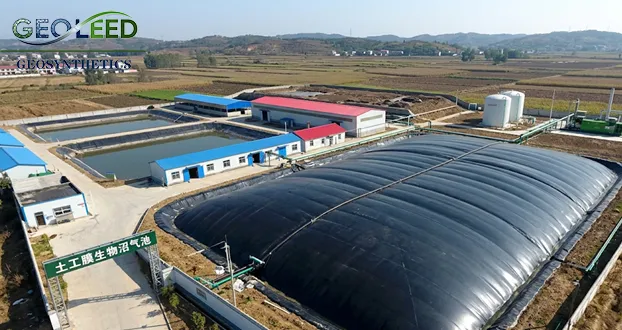

Top Cover (Floating Cover): Acts as a flexible gas holder that inflates as biogas (methane) is produced, maintaining airtight seal for anaerobic fermentation.
2.Core Challenges & Geoleed Solutions Superior Gas Tightness (Leak Prevention)
The Challenge: Methane molecules are tiny and escape easily under pressure. Poor seams or porous materials lead to energy loss and safety risks.
The Geoleed Advantage: Utilizing ultra-wide roll technology, we reduce the number of field welds by up to 30%. Fewer seams mean a significantly lower risk of gas leakage and higher energy collection efficiency.
High Flexibility & Tensile Strength (Pressure Resilience)
The Challenge: The top cover undergoes constant “inflation and deflation” cycles. This mechanical stress can cause tearing at the anchoring points.
The Geoleed Advantage: Our membranes feature an elongation at break of >700%. This extraordinary flexibility allows the cover to expand and contract safely without compromising the material integrity.
Advanced UV & Thermal Aging Resistance
The Challenge: Exposed black membranes can reach surface temperatures of 70°C (158°F). Heat combined with UV radiation accelerates polymer degradation.
The Geoleed Advantage: Our 20-year optimized formula includes high-grade Nano-Carbon Black and specialized antioxidants. Geoleed membranes are designed to remain durable for 15–20 years in harsh outdoor environments.
Bio-Compatibility & Corrosion Resistance
The Challenge: H₂S (Hydrogen Sulfide) in biogas is corrosive, and recycled materials can release toxins that kill the bacteria needed for fermentation.
The Geoleed Advantage: We use 100% Virgin HDPE Resin. It is chemically inert to H₂S and contains no toxic additives, creating the perfect “greenhouse” for anaerobic bacteria to thrive.
3.Technical Comparison Table
| Feature | Standard Geomembrane | Geoleed Biogas-Grade HDPE | Client Benefit |
| Raw Material | Recycled/Blended Resin | 100% Premium Virgin Resin | Maximum Airtightness |
| UV Resistance | Standard | Enhanced UV Stabilizers | 2x Longer Service Life |
| Stress Cracking | 300 – 500 Hours | ≥ 1000 Hours (ASTM D5397) | No cracks under gas pressure |
| Roll Width | 4 – 6 Meters | Custom Ultra-Wide Widths | Faster & Safer Installation |
Professional Pitch for Clients
“In a biogas project, gas tightness equals revenue. A leaking cover is a loss of profit. Geoleed provides more than just a liner; we provide a high-performance reaction vessel. By adhering to Sino-Japanese technical standards, we ensure your digester remains a high-yield asset for over two decades, even under the most demanding climatic conditions.”
